Khoom Taw Qhia

Sanwish's top-of-the-line DC fast chargers tau ua tiav kev ua haujlwm zoo thiab siv tshuab, thiab tsis ntev los no tau ua tiav cov ntawv pov thawj CE nruj heev. Daim ntawv pov thawj CE yog lub cim tseem ceeb ntawm cov khoom lag luam kev nyab xeeb, qhia tias lub charger no tsis tsuas yog ua tau raws li European txoj cai kev nyab xeeb, tab sis kuj muaj cov yam ntxwv ntawm cov khoom zoo, kev ntseeg siab thiab kev nyab xeeb siab. Nws yog qhov sib xws heev thiab txhawb nqa kev them nyiaj raws cai ntawm European thiab Nyij Pooj cov qauv, uas txhais tau hais tias cov neeg siv tuaj yeem yooj yim them lawv lub tsheb hluav taws xob hauv Europe thiab Nyiv.

Txawm tias qhov zoo siab tshaj plaws yog Sanwish qhov zoo tshaj plaws DC ceev charger kuj tau nruab nrog OCPP (Open Charge Point Protocol) huab platform, qhib kev sib txuas lus sib txuas lus uas ua rau kev tswj hwm ntawm cov chargers yooj yim heev. Los ntawm lub platform huab no, cov neeg siv lossis cov thawj coj tuaj yeem saib xyuas kev ua haujlwm ntawm lub charger hauv lub sijhawm, suav nrog cov ntaub ntawv tseem ceeb xws li them lub zog, lub sijhawm them nyiaj, thiab cov khoom siv. Nyob rau tib lub sijhawm, nws tseem tuaj yeem tswj tau los ntawm cov chaw taws teeb tswj thiab teeb tsa, xws li teeb tsa tus nqi them, txwv lub sijhawm them, thiab lwm yam, muab cov neeg siv nrog kev yooj yim thiab yooj yim.

Tsis tas li ntawd, OCPP huab platform kuj muaj cov ntaub ntawv txheeb xyuas thiab tshaj tawm cov haujlwm, uas tuaj yeem sau thiab txheeb xyuas cov ntaub ntawv siv ntawm lub charger, pab cov neeg siv kom nkag siab zoo dua cov kev xav tau them nyiaj thiab kev ua haujlwm ntawm cov cuab yeej, thiab muab cov ntaub ntawv muaj zog txhawb rau kev npaj them nyiaj rau yav tom ntej thiab kev ua kom zoo dua qub.

Nyob rau hauv xaus, Sanwish zoo tshaj plaws DC ceev charger yuav undoubtedly los ua ib tug thawj coj nyob rau hauv lub teb ntawm hluav taws xob tsheb them nrog nws cov kev ua tau zoo, kev nyab xeeb siab thiab yooj yim tswj functions, muab cov neeg siv nrog ib tug ntau npaum li cas, yooj yim thiab kev nyab xeeb kev them nyiaj.

Khoom nta

01CCS Charger & CHADEMO Charger

Sanwish zoo tshaj plaws DC ceev charger yog tsim los yam tsis muaj qhov tsis ruaj khov nrog kev ruaj ntseg siab, tiv thaiv qib IP55 thiab OCPP huab tswj platform.

02CCS&CHADEMO&AC

Multi-Standards & Nqi-Effective Electric Tsheb Charge Pile Solution.

03Tsheb-rau-GRID

Peb twb kov yeej v2g tshuab thiab tau siv nws.

04PCR-OCPP

Raws li OCPP raws tu qauv, kev ua haujlwm thiab kev saib xyuas tau teeb tsa.

05IP55 & CE

Ua tau raws li qhov yuav tsum tau ua ntawm International cov qauv kev nyab xeeb.

Khoom parameter

Khoom Specification

Qauv	SW-DC 240-01
Input voltage	AC380V ± 15%
Output voltage	DC 200-1000V
Fais fab xwm txheej	Ntau dua lossis sib npaug rau 0.99
Cov zis tam sim no	0-400A (qhov tso zis ntau tshaj ntawm ib rab phom 250A)
Tso zis zog	240 kW ib
Harmonic cov ntsiab lus	Tsawg dua lossis sib npaug li 5%
Voltage ntau	Tsawg dua lossis sib npaug ±0.5%
Rwb thaiv tsev tsis kam	Ntau dua lossis sib npaug li 20MΩ
AC leakage tiv thaiv muaj nuj nqi	Yog lawm
Suab nrov	Tsawg dua lossis sib npaug li 60dB
Khoom efficiency	Ntau dua lossis sib npaug li 95%
Zaub screen	7-inch xim kov npo
Kev them nyiaj yug interface	Ob chav connector
Kev sib txuas lus Interface	Ethernet, 4G (yeem)
Kev them nyiaj hom	Tsis siv neeg them tag nrho; Them los ntawm lub sijhawm, los ntawm lub zog, los ntawm tus nqi
Kev tiv thaiv qib	IP55
Ua haujlwm kub	-30 degree - +70 degree
Cia kub	-40 degree - +70 degree
Ua haujlwm av noo	5%-95% Tsis muaj condensation
Ua haujlwm qhov siab	Tsawg dua lossis sib npaug li 2000m; Derating yuav tsum tau siv rau siab tshaj 2000m
Cov khoom tiv thaiv	Anti-moisture, anti-mildew, anti-ntsev tshuaj tsuag
Kev them nyiaj yug connector life	Ntau dua lossis sib npaug li 10000 npaug
Txoj kev them nqi	RFID daim npav tapping / QR code scanning / APP them nyiaj (yeem)
Backend APP	Ethernet module / 4G module (yeem)
Khoom hnyav	Tsawg dua lossis sib npaug li 240KG
Kev them nyiaj cable	3 * 95mm² +2} * 50mm²
Khoom dimension	800 * 600 * 1700 hli

Product Showcase

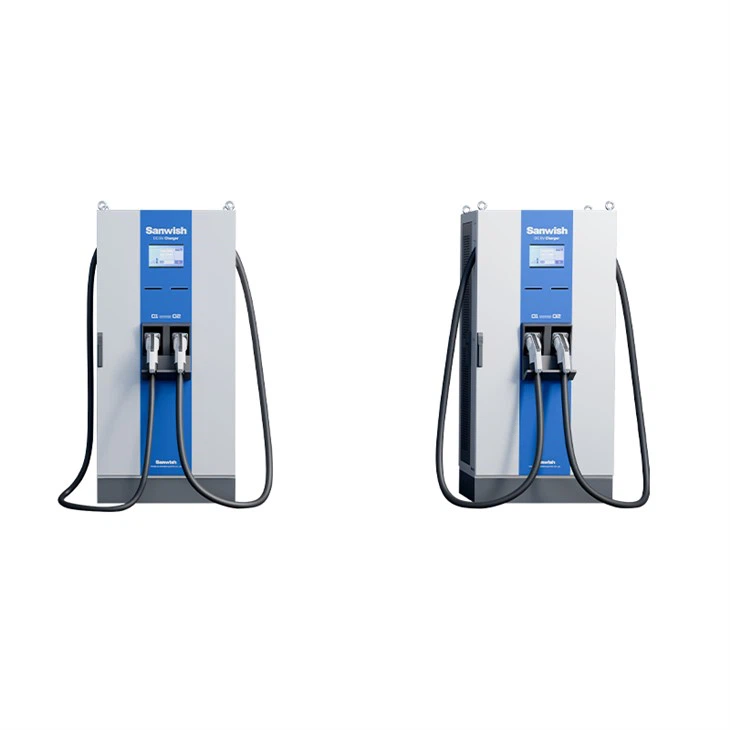

DC EV Charger Tsev

saib ntxiv

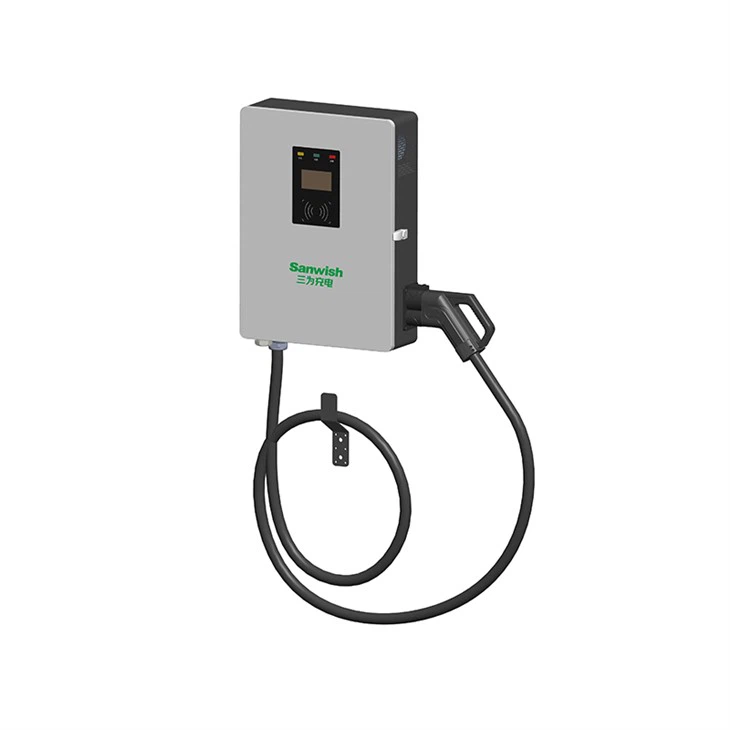

CCS DC Fast Charger

saib ntxiv

DC EV Charger Manufacturers

saib ntxiv

DC Charger Tsev

saib ntxiv

Cov khoom siv

Txog Peb

product-1216-572

product-1215-489

Certificate Display

FAQ

Q: Koj txoj cai qauv yog dab tsi?

A: Peb tuaj yeem muab cov qauv rau cov neeg siv khoom yog tias peb npaj cov khoom hauv Tshuag, tab sis cov neeg siv khoom yuav tsum them tus nqi coj mus kuaj thiab tus nqi xa khoom. Txhua yam xav tau thov hu rau peb pab pawg muag khoom.

Q: Koj puas tuaj yeem xa koj cov khoom mus rau txhua lub tebchaws?

A: Peb xa peb cov khoom thoob ntiaj teb mus rau ntau lub teb chaws. Yog tias koj tsis paub meej, tiv tauj peb ntawm email lossis lus.

Q: Kuv yuav ua li cas yog tias kuv cov khoom tuaj txog puas, faulty lossis tsis raug?

A: Nyob rau hauv rooj plaub uas qhov no tshwm sim, thov hu rau peb sai li sai tau thaum koj tau txais cov khoom. Thov muab koj lub npe, tus lej xaj thiab qhov teeb meem kom peb daws tau sai rau koj.
